30 feet video camera telescopic aluminum mast with trolley base

FOB Reference Price:Get Latest Price
US$850.00 - US$1,100.00 / Sets | 1 Set/Sets aluminum mast with trolley base (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
Talents
Model Number:
TAL-P9-2.4-30
Product name:
aluminum mast with trolley base
Extended height:
9m
Closed height:
2.4m
Material:
Aluminum Alloy 6063B
Max payload:
30 kgs
Type:
pneumatic lifting
Max windload:
100km/h
Working pressure:
0.25 Mpa
Application:
Lifting head fixed equipment
Color:
bronze
Supply Ability
Supply Ability:
300 Set/Sets per Month aluminum mast with trolley base
Packaging & Delivery
Packaging Details
mast and the accessories are to be packed into a carton with inside filled by Polyurethane foam
Port
Port of Tianjin China
Detailed Images
30 feet video camera telescopic aluminum mast with trolley base

Bottom flange

mount the mast to filed or other base.
and bottom bracket with air inlet for air pipe connect with the air Compressor or foot/hand pump.

locking

Designed for long-term use. For preventing the mast slide down.

power cable

can be inside or outside of mast

Product Description
30 feet video camera telescopic aluminum mast with trolley base
technical data
main spec.
1)Extended height: 9m
2)Retracted height: 2.4m
3)Outer diameter range:51-66-82-98-118mm
4)Thickness: 3-3-3.5-4-4mm
5)Maximum head loads: 30kgs
 6)Number of sections: 5 sections
7)Wind load :100 km/h
8)Max Working pressure of air compressor:0.25MPA
9)Working temperature :-25 deg C to +60 deg C
Accessories
Car clamp--------------------------------------------------1 unit
Ground anchor------------------------------------------8 pieces
Guy wire----------------------------------------------------8 pieces
Air pump---------------------------------------------------1 piece
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Al-Mg alloy 6063
Color
bronze
accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit

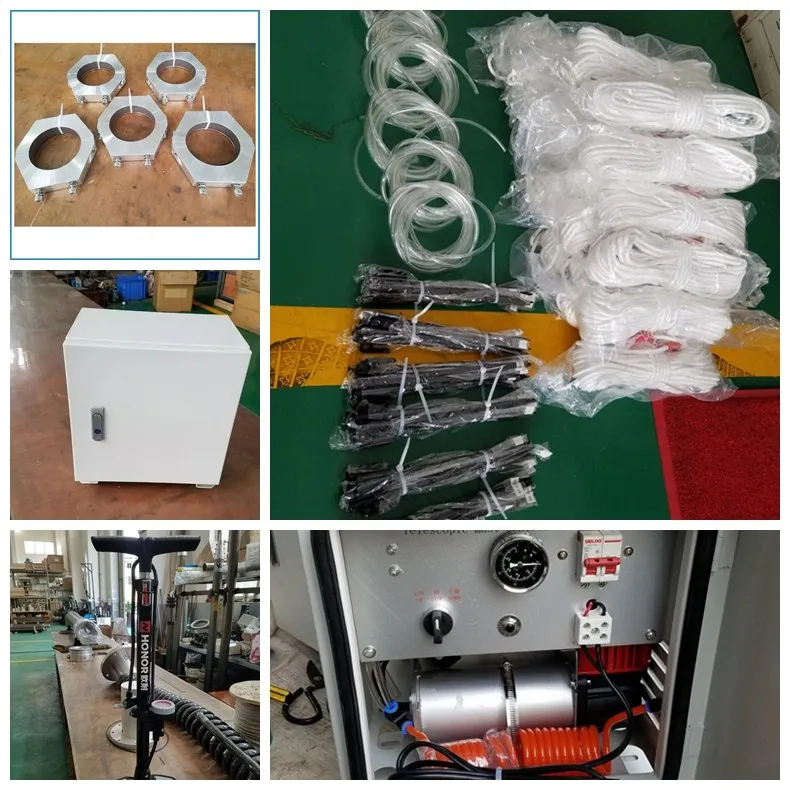

more details as follows

Swift mast cover with the pulling wire rings Warning that the mast fully retracted. And protect the mast

Car Clamps for vehicle mounting mast.
Assist the pole to be fixed to a t
ruck or car
The rings for fixing the pulling wire when mast without the tripod and no mounting fixed accessories
Control box:With the swift for up and down, small air compressor
Air pipe,Pressure gauge
Basic guy accessories

manual hand pump

Packing & Delivery

6 to 9 meter ground based telescopic photography sport video mast

package
carton packed
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request

plywood packed
normal package is plywood case for extended height more than 10m, weight more than
70kg mast
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel    stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
 oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
  it’s better  mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
     using 10 thousand times.
air powered telescoping boom mast
Workshop
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade pneuamtic mast as follows
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
max. head loads(kg)
self weight
(kg)
2
2
1.3
118-98
150
22
3
4
1.1
87-43
30
25
6
5
1.7
118-51
30
42
8
7
1.8
140-36
30
65
10
7
2.20
140-36
30
72
12
7
2.6
140-36
15
85
15
7
3.0
140-36
20
90
16
8
3
180-51
30
175
18
10
3
279-66
100
330
20
9
3.3
229-66
55
300
30
13
4
316-51
30
630
