9m stainless steel telecom 6m military manual telescopic mast

FOB Reference Price:Get Latest Price
US$500.00 - US$1,000.00 / Units | 1 Unit/Units telecom 6m military manual telescopic mast (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
talents
Model Number:
TAL-M5m to 15m
extended height:
5m to 15m
Top payload:
10kg or customized
Material:
aluminium alloy 2A12T4
retracted height:
1.65m to 2.5m
wind load capaicty:
100km/h to 120km/h
section OD range:
30-130mm
color:
army green or customized color
accessories:
hand winch, guy wires
custom-made:
accepted
used on:
ground or vehicle
Supply Ability
Supply Ability:
200 Unit/Units per Month telecom 6m military manual telescopic mast
Packaging & Delivery
Packaging Details
packing of mast and accesories one set put into a plywood case
Port
China main port
Detailed Images

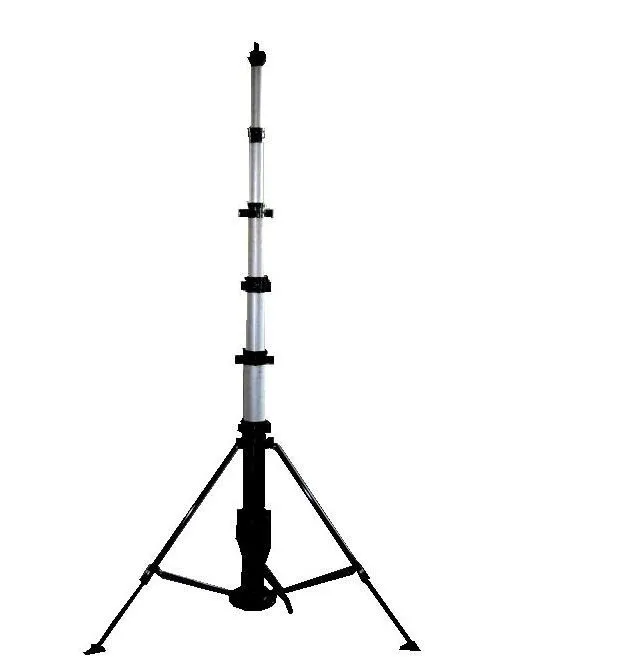

9m stainless steel telecom 6m military manual telescopic mast
Product Description
9m stainless steel telecom 6m military manual telescopic mast
technical data
main spec.
Closed length: 1.65m to 2.5m (Bottom base included)
Extended length: 5m to 15m (Bottom base included)
Max loading:10kg
Temperature: working temp:-45--+50℃ Storage Temp:-55--+70℃
main pole in sections
Section No. OD Thickness
1# 30mm 2.0mm
2# 40mm 2.0mm
3#: 50mm 2.0mm
4#: 60mm 2.0mm
5#: 70mm 2.0mm
6#: 80mm 2.0mm
7#: 90mm 2.0mm
8#: 105mm 2.5mm
9# 130mm 5.0mm
Bottom base
diameter: 180mm Thickness: 12mm
Accessories
Guy rope--------------------------------------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
accessories

Pulling cord box with handle bars------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece

Packing & Delivery
9m stainless steel telecom 6m military manual telescopic mast
Workshop
why choose our masts

1.all masts include 1 year limited warranty

2.this type masts are extendable manually, no pumps, no complex extension devices,

no power sources required.

3.completely maintenance-free

4.deliveried ready to use

5.we ship worldwide

Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade manual mast as follows----payload no more than 10kg
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
self weight
(kg)
4
3
1.6
60-80
14
5
4
1.65
50-80
17
6
5
1.7
50-90
21
8
6
1.8
40-90
24
10
7
1.95
30-90
26
12
7
2.2
30-90
28
15
8
2.45
30-105
33
18
9
2.7
30-130
47
20
9
2.95
30-130
55
22
9
3.15
30-130
58
25
10
3.4
30-150
72
30
10
3.85
30-150
84
Welcome to contact

contact person: Ms.Grace Wang

Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |
Skype:talents106

whatsapp:+86 18222428293

W: http://www.tjtalents.cn

please advise if you get interested in our product, price list and video will be sent for reference
