15 foot large trailer gsm telescopic mast microwave antenna tower

FOB Reference Price:Get Latest Price
  • 1 - 4 Sets
    US$1,900.00
  • >=5 Sets
    US$1,700.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
TALENTS
Model Number:
TAL-E15
Product name:
large telescopic trailer mast
Closed height:
2200mm
Extended height:
10000mm
Material:
Aluminum Alloy 2A12T4
Type:
Motorized lifting
Max payload:
30kgs
Motor Voltage:
DC12V or AC220V or AC110V
Max windload:
100km/h to 120km/h
Color:
Army green or customized color
Application:
Lifting head fixed equipment
Supply Ability
Supply Ability:
300 Set/Sets per Month large telescopic trailer mast
Packaging & Delivery
Packaging Details
large telescopic trailer mast and the accessories are wrapped with foamed membrane and then to be packed into a polywood case
Port
Port of Tianjin China
Lead Time :
10 days after receiving the payment
Video Description





                15 foot large trailer gsm telescopic mast microwave antenna tower







  15 foot large trailer gsm telescopic mast microwave antenna tower

Specification list

 Article number:TAL-E10-2.2-30
 Max top payload: 30kgs
 Closed length: 2200mm
 Extended length: 10000mm
 Main poles' sections: 7 sections
      sec.1#(OD/ID/thickness): 105/100/2.5mm
      sec.2#(OD/ID/thickness): 90/86/2.0mm
      sec.3#(OD/ID/thickness): 80/76/2.0mm
      sec.4#(OD/ID/thickness): 70/66/2.0mm
      sec.5#(OD/ID/thickness): 60/56/2.0mm
      sec.6#(OD/ID/thickness): 50/46/2.0mm
      sec.7#(OD/ID/thickness): 40/36/2.0mm
 Bottom base size (L/W/thickness): 600/220/12mm
 Top plate size (dia./thickness): 160mm/10mm
 Working temperature: -40--+50C
 Mortor power: DC12v/370w
 Wind load: 100km/h to 120km/h
 Pulling cord's OD: 2mm
 Material for main pole: aluminum alloy 6063B and 2A12T4
 Material for bottom base: iron steel
 Material for accessories: iron steel
 Material for pulling cord: stainless steel
 Material for other asscessaires iron steel

                                                    Packing list:

 Mian pole in 3 sections:     1 set
 Mortor(DC12v/370w):    1 set
 Handle lifting bar:    1 piece
 Electrical equipment control box:    1 set
 Remote controller:    2 pieces
 Bottom base:    1 piece
 top plate:    1 piece
 Pulling cord box with handle bars:    3 sets
 Ground anchor:    3 pieces
 Clamp:    1 piece
 tripal:    1 set
 Surface color Technology: Painting in army green, the whole unit will  be in army green when closed, but when  extended, the main pole will be in origin  color of the aluminum alloy only with top   4cm of each section in army green color.
 Packing method:

 the main pole and the accessories are  wrapped with foamed membrane and then

 to be packed into a polywood case





      15 foot large trailer gsm telescopic mast microwave antenna tower









                    1.  The telescopic mast is made of aluminum alloy or stainless steel tube.

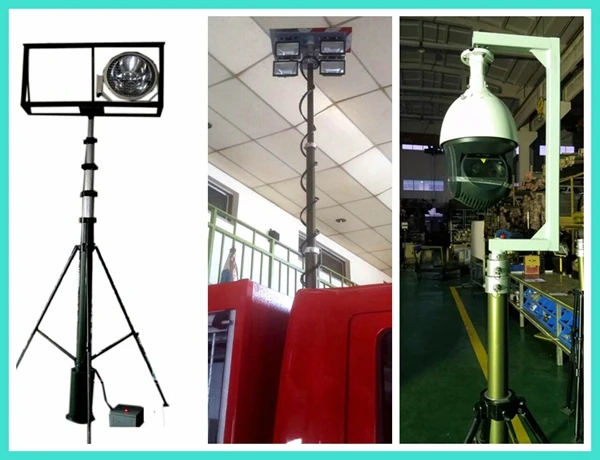

                    2.  It can help lamplight, camera, Antenna, mobile and military, emergency, illumination,

                         photography, meteorological measurement equipments rise and drop to a certain

                         height after its work.

                   3.   It can be mounted on the vehicle or stand on the ground with tripod.

                   4.   It has manual, motorized and pneumatic lifting method, the extended length up to 35m

                        and closed length to 1.3m.

                  5.  The top payload up to 400kgs, wind load: 80 km/h., working temperature: -15--+60.

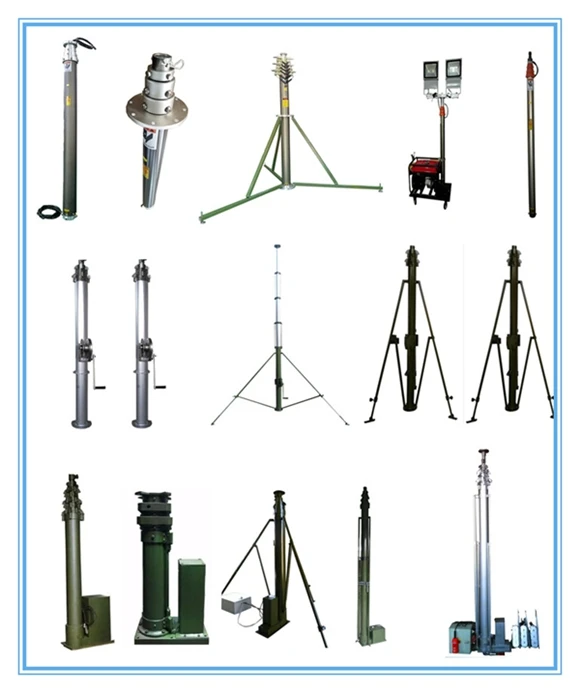

                         Except the motorized lifting telescopic mast, we still have manula lifting and pneumatic lifting

                         telescopic masts available for supply as follows, please refer to the catalogue attached below:







                                                                                            Mortorized lifting telescopic mast

    Article No.

     Retracted

    height (mm)

    Extended       height (mm)

     Diameter

   range (mm)

  Section

    No.s

     top        payload

     (kgs)

 TAL-2M-30         1000        2000       40-60      3      30
 TAL-2M-100         1200        2000       105-130      2     100
 TAL-3M-250          1750        3000       90-130      3     250
 TAL-4M-250         1800         4000       90-130      3     250
 TAL-4M-10         1550        4000       40-80      4      10
 TAL-4M-50         1200        4000       60-130      6       50
 TAL-5M-150         1400         5000       60-160      6      150
 TAL-5M-600         1600         5000       60-150      5     600
 TAL-6M-10         1700         6000       40-90      6      10
 TAL-6M-50         1700        6000       50-105      6      50
 TAL-8M-30         2200        8000       40-105      6      30
 TAL-10M-30         2450        10000       40-105       7      30
 TAL-12M-200         2450        12000       70-160      7     200
 TAL-12M-35         2300         12000       40-130      7      35
 TAL-12M-100         2700        12000       50-130      7     100
 TAL-15M-20         2800        15000        40-105      7      20
 TAL-15M-30         2800        15000        50-130      7      30
 TAL-15M-300         2700        15000       60-155      7     300
 TAL-20M-200         3700         20000        70-230      7     200
 TAL-25M-80         3400        25000       60-230     10      80
 TAL-25M-60         3400         25000       60-210     10      60
 TAL-28M-15         3700        28500       30-130     10      15
 TAL-35M-10         3900         35000       30-180     11      10







Welcome to contact

contact person: Ms.Grace Wang                      Talents Enterprise Company Limited

T: 86 22 28376666 | F: 86 22 28376667 |          wechat: 1093812653
Skype:talents106
whatsapp:0086 18222428293
