10m portable manual hand lifting winch pole telescopic mast

FOB Reference Price:Get Latest Price
US$800.00 - US$1,000.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 2 - 10 11 - 20 >20
Est. Time(days) 7 12 18 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
talents
Model Number:
TAL-M10-2-10
Length:
10M
Material:
aluminium alloy 2A12T4
Top payload:
10kg
retracted height:
2m
wind load capaicty:
100km/h to 120km/h
section OD range:
30mm to 90mm
color:
army green or customized color
accessories:
hand winch, guy wires
used on:
ground or vehicle
custom-made:
accepted
Supply Ability
Supply Ability:
200 Unit/Units per Month 10m Manual Lifting Telescopic Mast
Packaging & Delivery
Packaging Details
packing of 10m Manual Lifting Telescopic Mast one set put into a plywood case
Port
China main port
Lead Time :
Quantity(Units) 1 - 1 2 - 10 11 - 20 >20
Est. Time(days) 7 12 18 To be negotiated

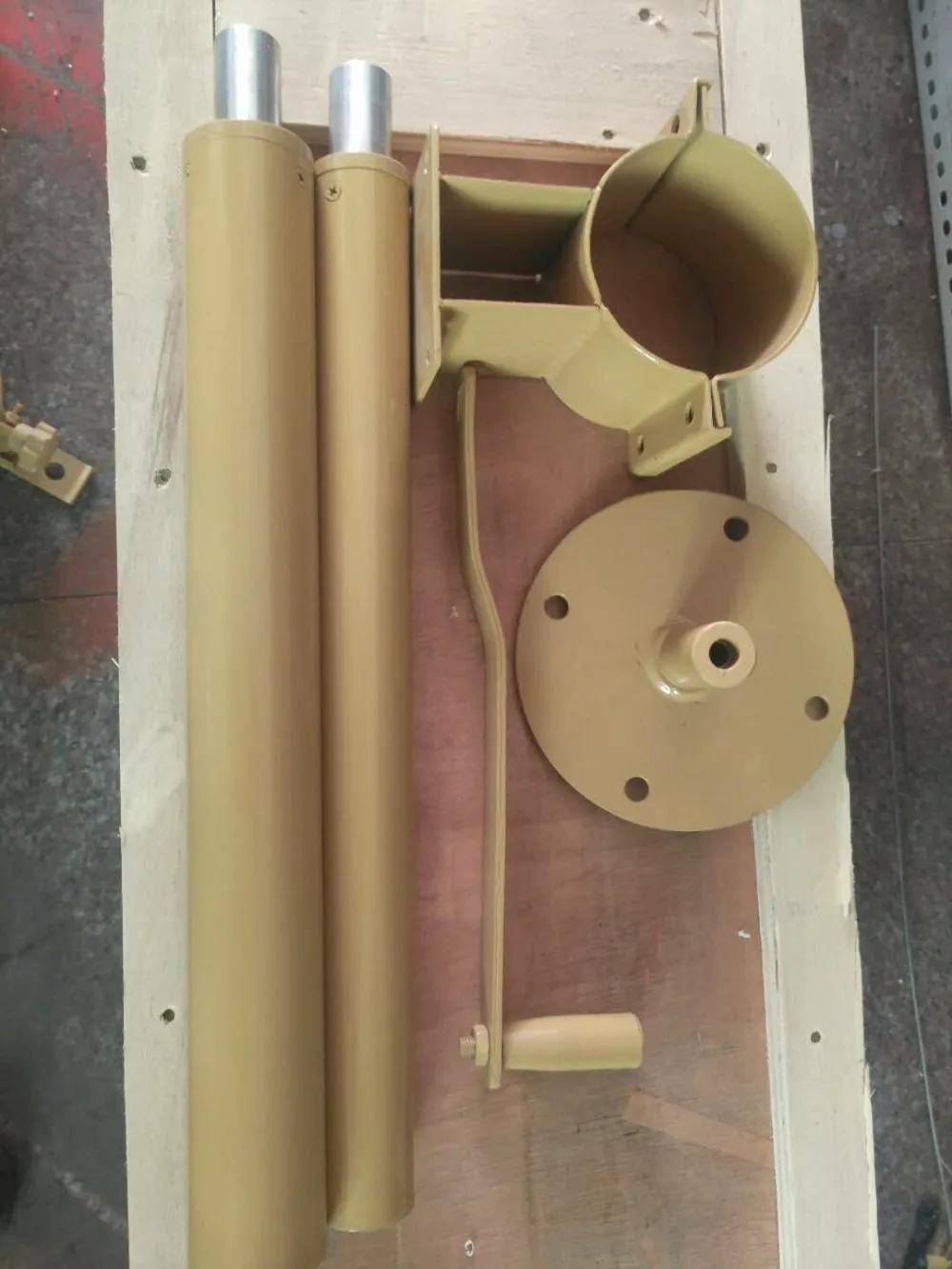

Detailed Images
10m portable manual hand lifting winch pole telescopic mast
Product Description
10m portable manual hand lifting winch pole telescopic mast
technical data
main spec.
Closed length: 2m         (Bottom base included)
Extended length: 10m                  (Bottom base included)
Max loading:10kg
Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections
Section No.           OD                            Thickness                  Length
1                               30mm                      2.0mm                       1.9m
2                               40mm                       2.0mm                      1.9m
3                               50mm                      2.0mm                        1.9m
4                               60mm                      2.0mm                        1.9m
5                              70mm                      2.0mm                        1.9m
6                              80mm                       2.0mm                        1.9m
7                              90mm                       2.0mm                        1.9m
Bottom base
diameter: 180mm                   Thickness: 12mm
Accessories
Guy rope--------------------------------------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
accessories

Pulling cord box with handle bars------------------3 units
Ground anchor------------------------------------------3 pieces
Handle lifting bar---------------------------------------2 pieces
304 stainless steel stakes-------------------------------6 pieces
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece

Packing & Delivery
10m portable manual hand lifting winch pole telescopic mast
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel    stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
 oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
  it's better  mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
     using 10 thousand times.
air powered telescoping boom mast
Workshop
Our Service
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade manual mast as follows----payload no more than 10kg
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
self weight
(kg)
4
3
1.6
60-80
14
5
4
1.65
50-80
17
6
5
1.7
50-90
21
8
6
1.8
40-90
24
10
7
1.95
30-90
26
12
7
2.2
30-90
28
15
8
2.45
30-105
33
18
9
2.7
30-130
47
20
9
2.95
30-130
55
22
9
3.15
30-130
58
25
10
3.4
30-150
72
30
10
3.85
30-150
84
