5m Hand winch telescopic mast

FOB Reference Price:Get Latest Price
  • 5 - 9 Units
    US$698.94
  • 10 - 19 Units
    US$680.21
  • 20 - 49 Units
    US$671.23
  • >=50 Units
    US$661.05
Lead Time:
Quantity(Units) 1 - 10 >10
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
Talents, Hand winch mast
Model Number:
TAL-M5-4.65-10-A
Product name:
5m Hand winch telescopic mast
Material:
aluminum alloy
Adjust height:
1.65m to 5.0m
sections number:
4
Color:
army green, silver, bronze color for choose
Diameter range:
50mm-80mm
Max Wind load::
120km/h
Temperature::
working temp:-40--+50C Storage Temp:-55--+70C
Accessories::
guy wire, tripod,
OEM:
acceptable
Supply Ability
Supply Ability:
300 Unit/Units per Month Hand winch telescopic mast
Packaging & Delivery
Packaging Details
PACKING:
Each unit of Hand winch telescopic mast ( main pole and all accessories) to be wrapped with Poly tapes and then into a wooden case. The Control box to be packed into a separate wooden case.
Port
Xingang port, China
Lead Time :
Quantity(Units) 1 - 10 >10
Est. Time(days) 10 To be negotiated
Detailed Images

Accessories of Hand winch telescopic mast


Main pole
1 unit
Ground anchors
3 pieces
Pulling cord box with handle bars
3 pieces
Tripod
1 unit
Hand lifting bar
1 piece

Specifications:


Closed length
1.65m ( bottom base included)
Extended length
5.0m ( bottom base included)
Temperature
working temp: -40------+50C
storage temp: -55------+70C
Diameter range
50mm--80mm
Product Description

5m Hand winch telescopic mast

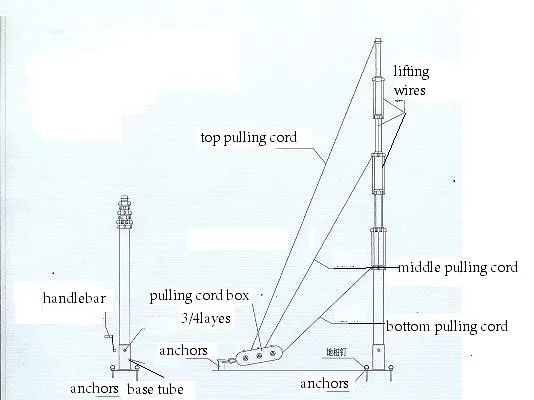

          manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

          rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
          depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle
          situation.
          Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
          upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
          no rain go in.
          The mast available extended height is 2m to 45m.The payload up to 300kg from 5kg.
          It can help lamplight,camera,ham radio,photography,antenna,yagi ,lightning rod,or else communication devices.......

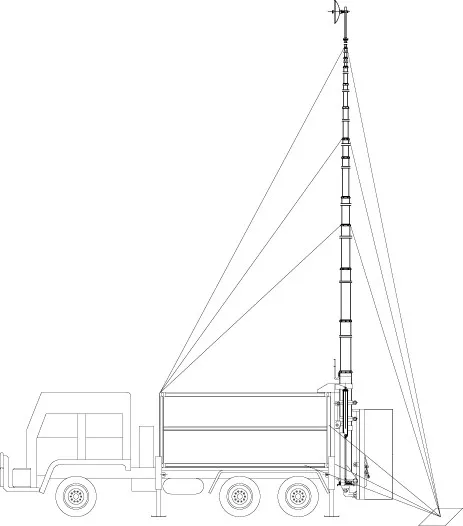

          It can be used on the ground, vehicle mounted ,trailer , the wall or the mine......
Specification

5m Hand winch telescopic mast

Specification
5m Hand winch telescopic mast
Model No.
TAL-M5-1.65-10-A
Extended height
5.0m
Retracted height
1.65m
Max head-load
10kg
Mast self weight( without tripod)
around 18kg
Mast sections No.
4sections
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Guy wire: nylon
Color
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting
main pole in sections
SectionNo.     OD                  Thickness
1#                      50mm             2.0mm
2#                      60mm             2.0mm
3#                       70mm            2.0mm
4#                      80mm             2.0mm
Acessories
Mount model
Ground fixed type---without tripod
Accessories

handle lifting bar----------------------------------------1p
Top flange--------------------------------------------------1pc
Guy wire-----------------------------------------------------3pcs
Guy stakes--------------------------------------------------3pcs
stainless steel stakes------------------------------------3pc
Ground anchors-------------------------------------------3pcs
tripod-----------------------------------------------------------1pc
Details

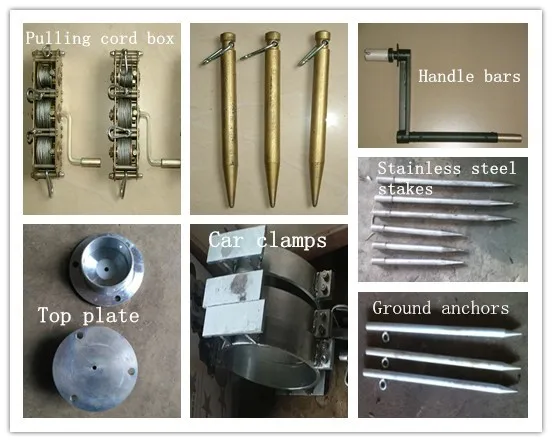

Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile.Rotary bearing for whirling.

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

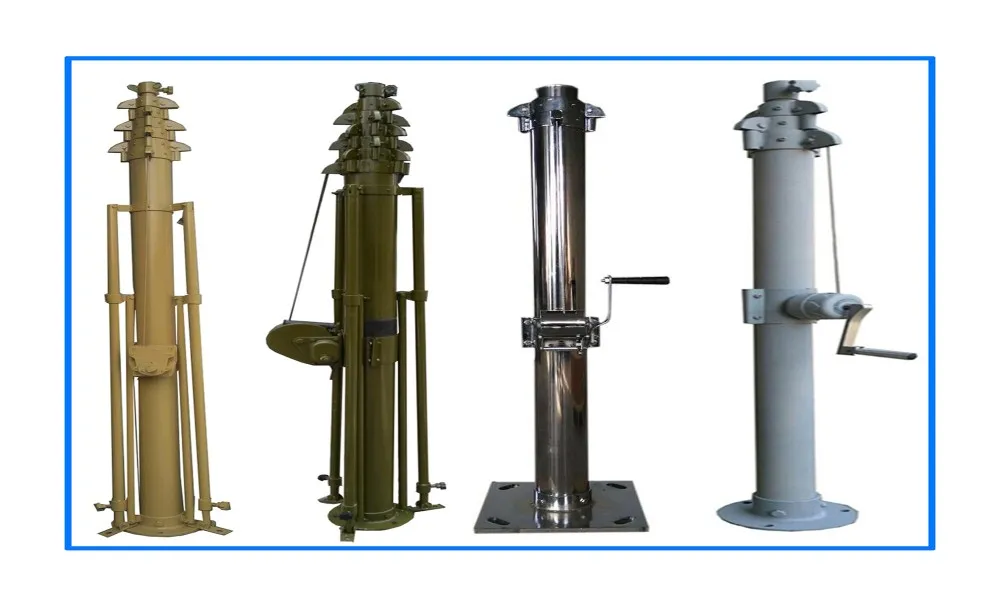

Catalogue

we produce telescopic mast manual lifting from 2m to 45m,for payload lights,camear,ham radio,yagi ,lightning rod,or telecommunication devices.Bellow is our catalogue of usual models for your reference.

Besides,we can design different of models for ODM and OEM.

Extended  height
(m)
No. Of section
Retracted height(m)
Outer tube range(mm)
Self weight
(kg)
Max.payload
(kg)
3
3
1.0
70-90
15
20
4
3
1.5
50-80
15
30
4
3
1.0
70-90
16
20
4
3
1.6
60-80
14
10
5
4
1.65
50-80
17
10
5
5
1.2
40-90
20
15
5
5
1.5
50-90
20
60
5
6
1.7
60-130
35
100
6
5
1.7
50-90
21
10
6
7
1.3
40-130
32
60
7
7
1.8
40-105
23
30
8
8
1.5
40-130
34
20
9
7
1.8
40-105
25
40
9
7
1.8
40-105
25
30
9
7
1.8
60-160
43
100
9
7
1.9
30-90
25
5
10
7
1.95
30-90
26
10
10
7
2
30-105
31
40
12
7
2.2
30-90
28
10
12
8
2.2
40-130
44
40
15
8
2.45
30-105
33
10
15
9
2.6
30-130
40
35
15
7
2.5
70-200
200
70
16
8
2.6
30-105
35
10
18
9
2.7
30-130
47
10
18
9
3.2
30-130
48
30
18
7
3.7
50-130
47
100
20
9
2.95
30-130
55
10
20
8
3.20
40-130
58
20
22
9
3.15
30-130
58
10
25
10
3.4
30-150
72
10
25
10
3.5
80-280
90
250
25
9
3.6
40-150
71
20
30
10
3.85
30-150
84
10
35
10
4.5
40-180
130
25
Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
