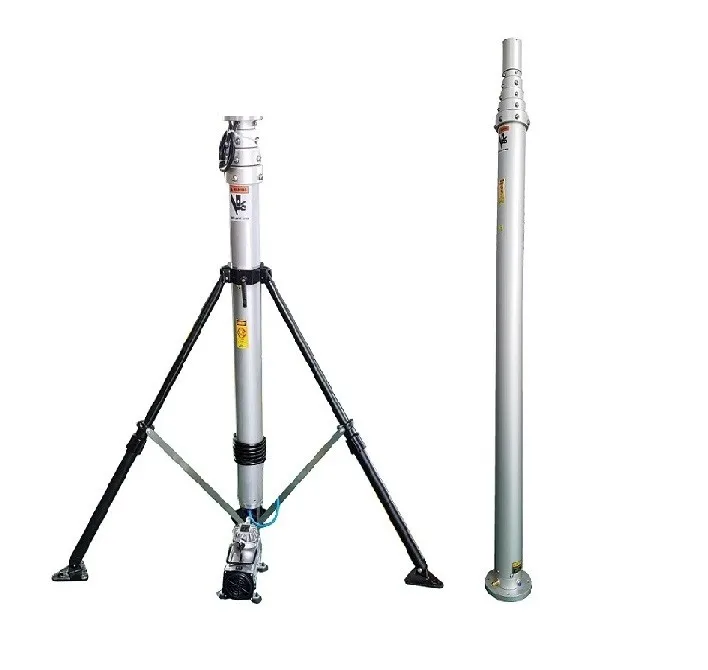

6m light weight portable foot pump tripod pneumatic telescopic mast for meteorology use

FOB Reference Price:Get Latest Price
US$400.00 - US$600.00 / Units | 1 Unit/Units (Min. Order)
Lead Time:
Quantity(Units) 1 - 1 2 - 10 11 - 20 >20
Est. Time(days) 7 12 18 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
talents
Model Number:
TAL-P6-1.75-12
total length:
6m
retracted length:
1.75m
wind load:
120km/h max.
Material:
aluminium alloy
Surface:
hard anodized treatment
color:
light brown or white
max. head loads:
12kg
lifting:
by manual pump
Working temparature:
-20--+50C
accessories:
tripod,guying wire box,anchors and lifting bars
Supply Ability
Supply Ability:
200 Unit/Units per Month 6m foot pump tripod pneumatic telescopic mast
Packaging & Delivery
Packaging Details
packing of6m foot pump tripod pneumatic telescopic mast: 1 set per carton
Port
China main port
Lead Time :
Quantity(Units) 1 - 1 2 - 10 11 - 20 >20
Est. Time(days) 7 12 18 To be negotiated
Video Description
Product Description

What is a Pneumatic Mast?

           Pneumatic masts are a type of elevation solution using compressed air to raise the central column to its extended height. The masts can either be locking, which each section locks into place once it reaches its maximum extension - designed for safety and long term use( do not lift down the mast), or non-locking where each section sits on cushion

of air- more appropriate for short time using.

Classification of masts

Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

Common application

Telecommunications, Surveillance, Broadcasting, Disaster Recovery, Site Surveys, Energy Production,
Site Security...and so on.

Mast specification

Available Extended height:2m to 30m
Head load capacity:5kg to 500kg.


Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.

If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.

Essential features
Model
TAL-P6-1.75-10
payload
10kg
height extended
6m
height retracted
1.75m
No. of section
5
outer tube diameter
87-70-56-43-28mm
wind loading capaicty
120km/h with guy wires fixed
working air pressure
0.25Mpa
working temperature
-25 deg C to +70 deg C
accessories
DC12V/24V/AD220V/110V air compressor-------------------------------1pc
tripod or car clamp---------------------------------------------------------------------1pc
air hose--------------------------------------------------------------------------------------1pc
guy wires------------------------------------------------------------------------------------4pcs
ground anchors--------------------------------------------------------------------------4pcs
control valve-------------------------------------------------------------------------------1pc
top plate--------------------------------------------------------------------------------------1pc
bottom base---------------------------------------------------------------------------------1pc
Packing & Delivery

6m light weight portable foot pump tripod pneumatic telescopic mast for meteorology use

package
carton packed
normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request

plywood packed
normal package is plywood case for extended height more than 10m, weight more than
70kg mast
Detail

6m light weight portable foot pump tripod pneumatic telescopic mast for meteorology use

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze, white and balck for choose.

Acessories

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Catalog
Pneumatic telescopic mast
MODEL No.
Extended
Height
(m)
Retracted
Height
(m)
Bottom
OD
(mm)
TOP
OD
(mm)
Section
NO.
Head-load
(KG)
TAL-2.0-1.3-150-AT8
2
1.3
118
98
2
150
TAL-3.0-1.5-50-AT8
3
1.5
98
66
3
50
TAL-4.0-1.3-20-AT8
4
1.3
87
43
4
20
TAL-4.5-1.65-50-AT9
4.5
1.65
118
66
4
50
TAL-5.0-1.7-40-AT8
5
1.7
98
51
4
40
TAL-5.0-1.75-30-AT9
5
1.75
98
51
4
30
TAL-6.0-1.7-30-AT8
6
1.7
118
51
5
30
TAL-6.0-1.75-12-AT8
6
1.75
87
28
5
12
TAL-6.0-2.0-50-AT9
6
2
118
66
4
50
TAL-6.0-1.95-30-AT8
6
1.95
87
43
4
30
TAL-6.0-1.5-25-AT9
6
1.5
118
51
5
25
TAL-7.0-1.95-40-AT8
7
1.95
118
51
5
40
TAL-8.0-1.8-50-AT9
8
1.8
160
51
7
50
TAL-8.0-2.2-60-AT7
8
2.2
140
66
5
60
TAL-8.0-2.0-25-AT8
8
2
118
36
6
25
TAL-9.0-2.15-30-AT8
9
2.15
140
51
6
30
TAL-10.0-2.4-30-AT7
10
2.4
140
51
6
30
TAL-12.0-2.7-250-AT8
12
2.7
279
140
7
250
TAL-15.0-3.5-150-AT9
15
3.5
229
98
6
150
TAL-16.0-3.0-30-AT8
16
3
180
51
8
30
TAL-18.0-3.0-100-AT8
18
3
279
66
10
100
TAL-20.0-3.3-55-AT8
20
3.3
229
66
9
55
TAL-30.0-4.0-30-AT8
30
4
316
51
13
30

NOTE:

above specification are standard model, customized size accepted


3 differents mast are in great demand recently

6m 30kg payload pneumatic mast

click the picture to view more details

15m 50kg payload motorized mast

click the picture to view more details

18m hand crank manual mast

click the picture to view more details
