15m motorized aluminum telecom telescopic camera mast pole

FOB Reference Price:Get Latest Price
US$2,100.00 - US$2,180.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
motorized camera mast pole
Model Number:
TAL-M-015
Material:
Main Pole: aluminum alloy
Product name:
15m motorized aluminum telecom telescopic camera mast pole
usual payload:
20kgs motorized camera mast pole
section:
8 sections motorized camera mast pole
Wind load::
working rate:25m/s Max rate:35m/s
Temperature::
working temp:-40--+50C Storage Temp:-55--+70C
Bottom base tube::
Bottom plate: Length:400mm width:190mm Thickness: 10mm
Accessories::
Motor, Pulling cord box with handle bars, Ground anchor
technology:
Power connecting method:original plug-without wire
Height:
Closed length:2.4m, Extended length: 15m
Supply Ability
Supply Ability:
300 Unit/Units per Month motorized camera mast pole
Packaging & Delivery
Packaging Details
PACKING:
Each unit of motorized camera mast pole ( main pole and all accessories) to be wrapped with Poly tapes and then into a wooden case. The Control box to be packed into a separate wooden case.
Port
Xingang port, China
Video Description
Product Description
8m to 20m tripod telescopic mast for platform tv
technical data
main spec.
Closed length:2.1m (Bottom base included)
Extended length: 10m (Bottom base included)
Max. payload: 30kg
Temperature: working temp:-40--+50C Storage Temp:-55--+70C
main pole in sections
Section No.                 OD                       Thickness
         1#                       42mm                       3.0mm
        2#                       55mm                        3.0mm
        3#                       69mm                        3.0mm
        4#                       83mm                        3.0mm
        5#                       98mm                        3.0mm
        6#                       114mm                     3.0mm
        7#                       132mm                     3.0mm
Bottom base
 length*width:620*220mm                   Thickness: 12mm
Accessories
Motor: (AC220v 300w)---------------------------------1 piece
Handle lifting bar----------------------------------------1 piece
Electrical equipment control box---------------------1 unit
Remote-controller----------------------------------------2 pieces
Material
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel
Pulling cord: stainless steel wire(OD:2mm)
Color
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: painting

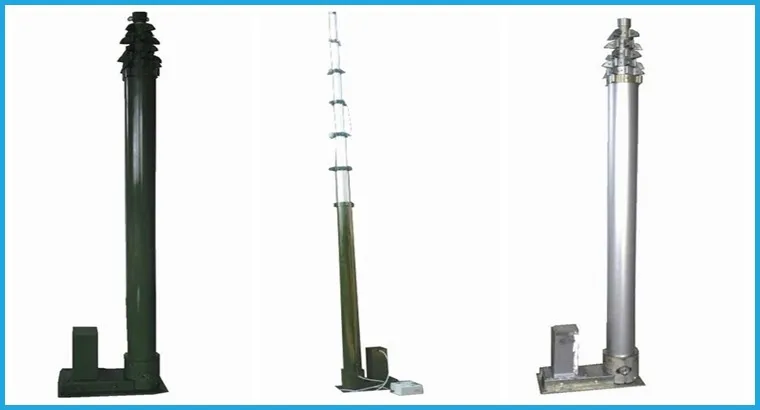

Product picture

mobile tripod communication telescopic mast

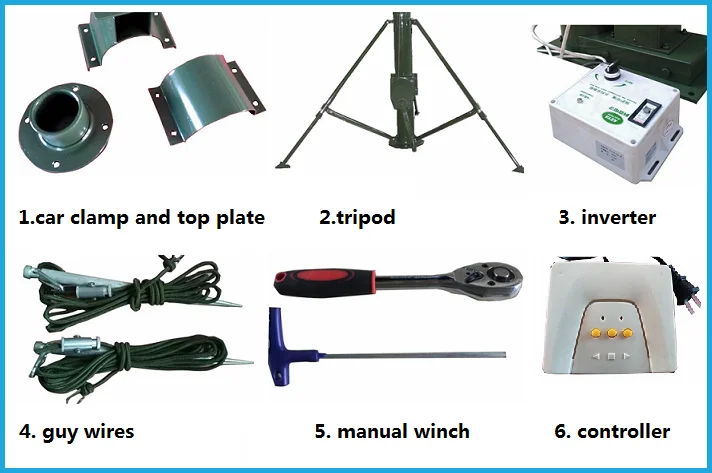

Accessories example

mobile tripod communication telescopic mast

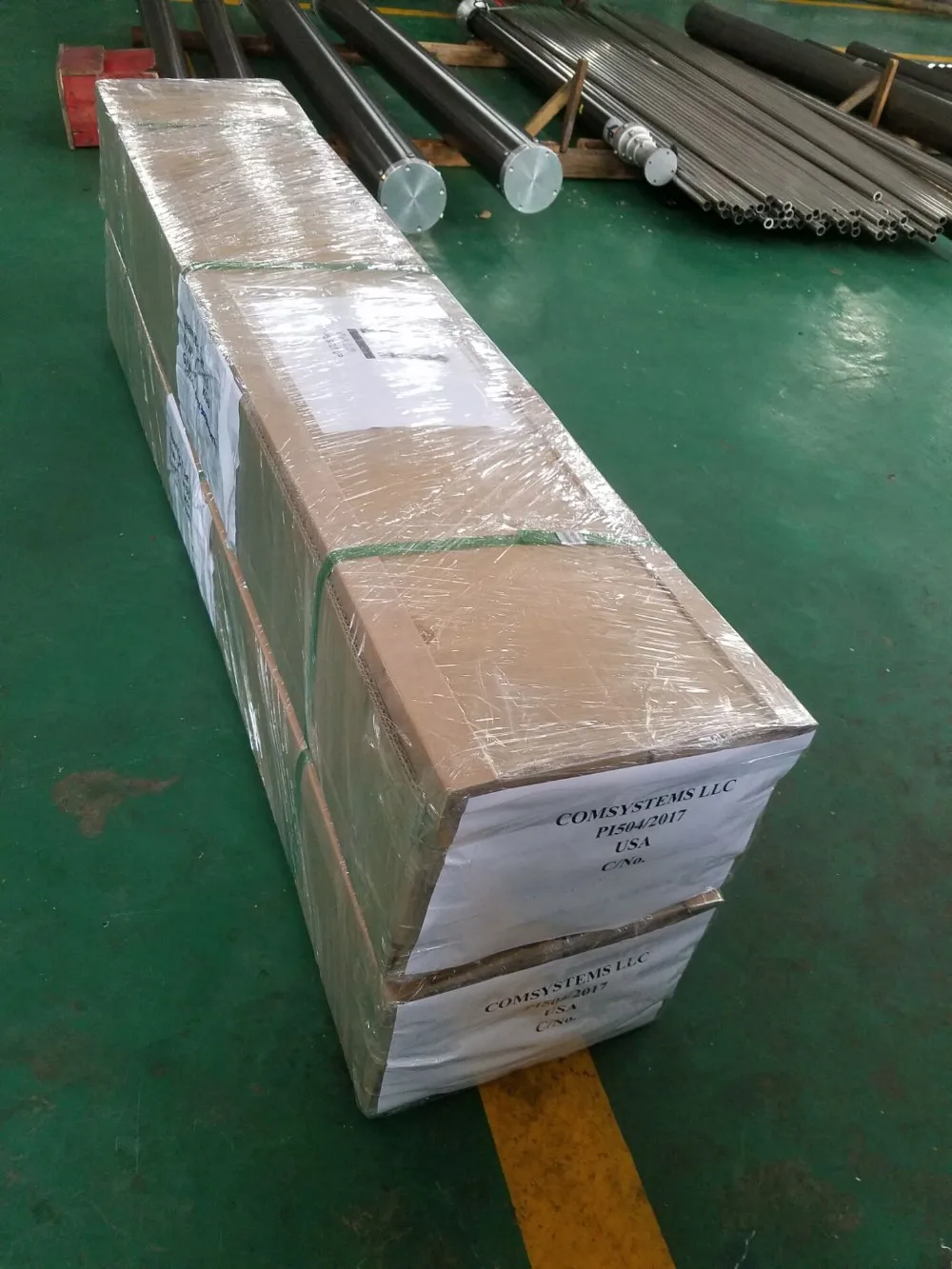

Packing & Delivery

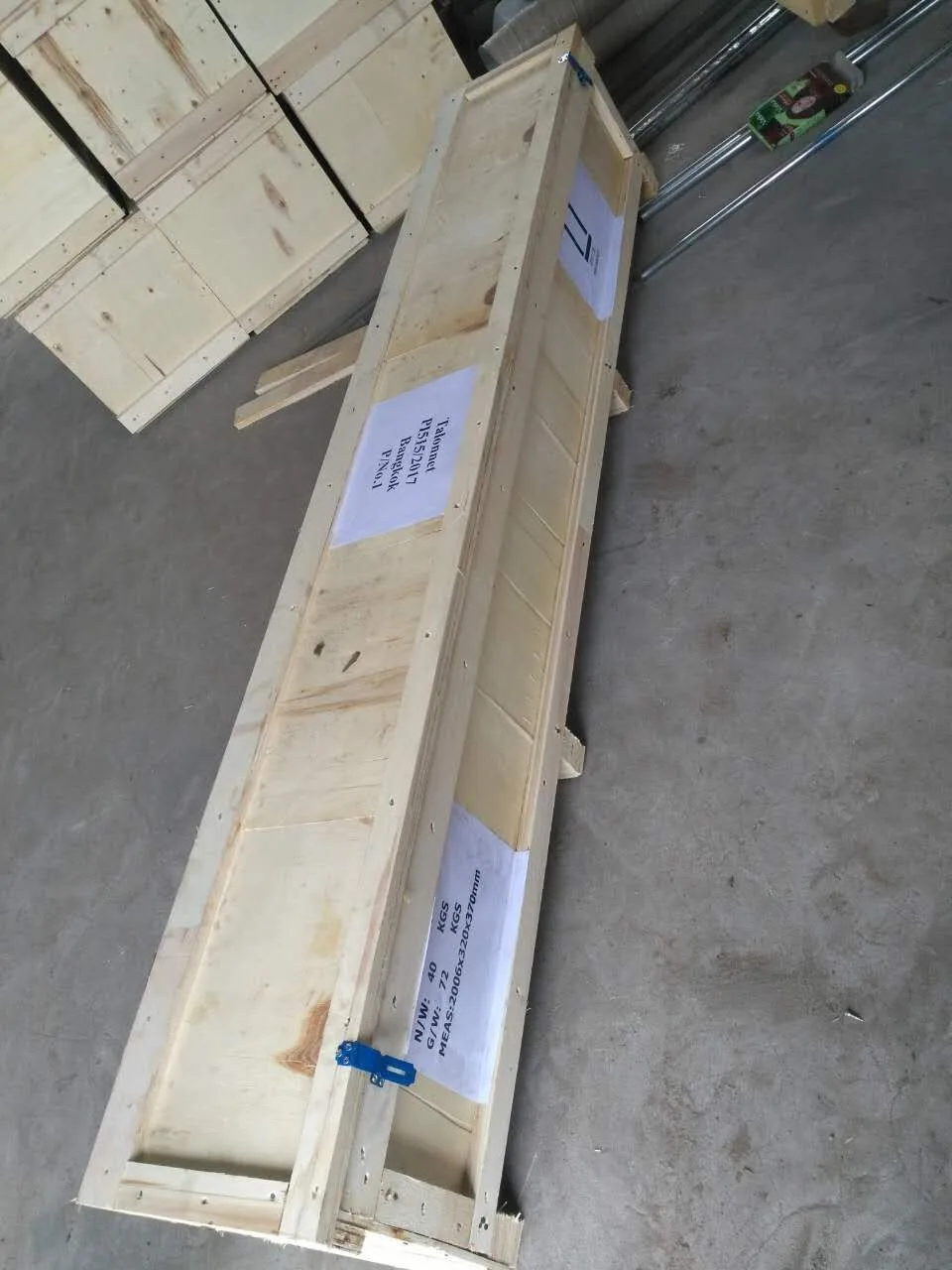

package
plywood packed
one set mast with accessories wrapped by polyester tapes, then packed into a
plywood case

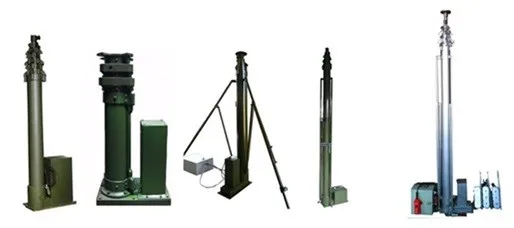

Catalog
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade motorized mast as follows
extended height
(m)
No. of section
retracted height
(m)
outer tube range
(mm)
self weight
(kg)
4
3
1.6
60-80
34
5
4
1.65
50-80
38
6
5
1.7
50-90
42
8
6
1.8
40-90
54
10
7
1.95
30-90
58
12
7
2.2
30-90
65
15
8
2.45
30-105
78
18
9
2.7
30-130
102
20
9
2.95
30-130
110
22
9
3.15
30-130
130
25
10
3.4
30-150
154
30
10
3.85
30-150
170
About us

1. we develop and manufacture telescopic masts,

     material is aluminum allo or steel,for nearly unlimited

     applications, it's used in radio facilities,for monitoring and        illumination systems in public works and military

     installations, for radio amateurs, in metrology and other

    fields. In addition, we are able to offer special solutions for       non-standard applications.

 2.especially our motorized mast has same advantages as

     manual  telescopic mast, it can be operated electrically

     or manually, and it can be self-locking at any position.

Our Service

OEM/ODM service available for the buyers
Professional team for consulation, solution and designing
Complete quality control system before delivery
Multi-way fast delivery channel at buyer's option

One year free after-sale warranty after delivery

Our Company


       Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
      Talents was founded in 1995, since then we focus on offering customers high quality, durable, applied and economic masts. 23 years of our specialized knowledge and experience of the telescopic mast technology allows us to effectively supply the solutions and designing for the OEM/ODM and after-sale services of the mast to meet our customer's needs, whilst ensuring that we are achieving maximum efficiency and output at the same time. We are serving our long-term customers from the five Continents and the four Oceans
       Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers
an one for one timely information feedback, we have organized an expert team for quality control and inspection system,
we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer. We
think outside the box and are continually developing new products to meet customer requirements, what you are asking
for is our motive power of task, we wish one of our products will well-meet what you demand.
