12m aluminum manual telescopic antenna mast steel pole electric motorized mast pole pneumatic mast for camera lighting lamp towe

FOB Reference Price:Get Latest Price
US$850.00 - US$950.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
Talents manual mast
Model Number:
TAL-M12-2.1-15
Product name:
12m aluminum manual aluminum manual telescopic antenna mast
Color:
army green aluminum manual telescopic antenna mast
Material:
Main Pole: aluminum alloy 2A12 T4
Specifications:
Closed length:2.1m, Extended length: 12m
Wind load::
working rate:25m/s Max rate:35m/s
Temperature::
working temp:-40--+50C Storage Temp:-55--+70C
Accessories::
Nylone Pulling cord, Ground / wall bolts, Handle lifting bar
max payload:
15kgs
Bottom base:
Diamerer:220mm
Thickness::
10mm aluminum manual telescopic antenna mast
Supply Ability
Supply Ability:
300 Unit/Units per Month aluminum manual telescopic antenna mast
Packaging & Delivery
Packaging Details
One unit of( telescopic antenna mast)main pole and all accessories to be wrapped with Poly tapes and then two units to be packed into a plywood case with metal belts reinforced.
Port
Shenzhen, China
Video Description
Product Description

          manual telescopic mast is composed of three sections,the main pole,manual lifting power,connection wire

          rope.Hand lifting and screw nut power systerm generate upward momentume.The max payload mainly
          depends on sections,height, diameter ,the bottom base,and the tripod,pulling cord ,as well the ground or vehicle
          situation.
          Screw nut transmission systerm utilizing transformation of force,make a small hand power produce great
          upward momentum. Combination part tightness and aluminum alloy material of the mast let no water retention ,
          no rain go in.
          The mast available extended height is 2m to 35m.The payload up to 300kg from 5kg.
          It can help lamplight,camera,ham radio,photography,antenna.......
          It can be used on the ground or vehicle mounted or the wall......
Specification for 12m.
Article number
 TAL-M12-2.1-15
Lifting method
manual lifting
Closed length and extended length
2.1-12m
material
for main tube:alluminun alloy
net wieght
38kgs( include tripod and other accessories)
Max payload
10kgs
wind load
80km/h
temperature
-40--+50℃
sections
7
outer tube diameter
30-90mm
reference bottom base
Diameter:120mm Thickness: 10mm
Details


Accessories.

Usually the pulling rope used on less than 15m mast;The pulling cord box used on above 15m mast;The tripod used in the flat ground;Clamps used in vehicle mounted;The wheels used to help mobile

If you have other accessories requirement, please contact us separately.

Surface treatment .

Painting or Anodizing

Color :

army green, yellow, white, bronze... ...any color OEM is available.

Detail

12m portable field locking telescopic pneumatic mast

Mast material is aluminum alloy 6063-T5

Tube surface treatment is Hard anodizing

Color:Bronze and origin silver color for choose.

Acessories for 12m portable field locking telescopic pneumatic mast .

Operation steps

1.check the mast in good condition
2.fixed the mast on the ground. tripod fixed diameter is 3.4m,guy wire fixed diameter is 8m.
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.

9. when lift down the mast, please pull down the lifting control valve handle bar..

Product picture

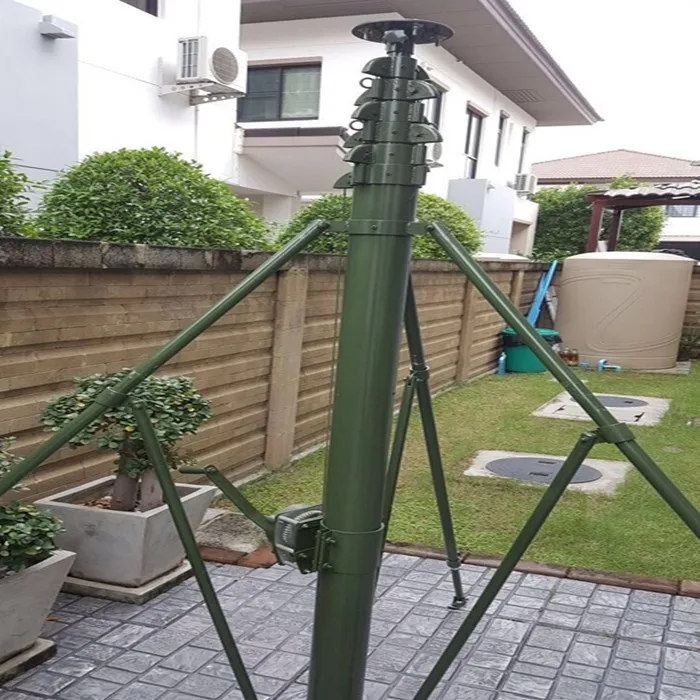

mobile tripod communication telescopic mast

Packing & Delivery

12m aluminum manual telescopic antenna mast.

Packing meterial: one unit of satellite antenna mast(main pole and all accessories)to be wrapped with EPE and then to be packed into a plywood case.

Gross weight:60kgs

Package meas:220*30*27

Workshop
Our Service

1.OEM/ODM service available for the buyers.
2.1 year free after-sale warranty after delivery.
3.Professional team for consultation, solution and designing.
4.Complete quality control system before delivery

5.Multi-ways fast delivery channel at buyer's option.

Our Company
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we are providing customers an one for one timely information feedback.We are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
