antenna hydraulic pneumatic telescopic mast for communication trunk

FOB Reference Price:Get Latest Price
US$300.00 - US$500.00 / Units | 1 Unit/Units hydraulic telescopic mast (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Tianjin, China (Mainland)
Brand Name:
TALENTS
Model Number:
TAL-P4.5-1.4-30
inside cable:
4*0.5RVV
retracted height:
1.4m
No. of section:
5
total height:
4.5m
outer tube range:
36-98mm
colr:
army green,white,black or others
max.payload:
30kg
used for:
lights
lifting by:
manual pump
life span of sealing ring:
20 thousand times
Supply Ability
Supply Ability:
200 Unit/Units per Month hydraulic telescopic mast
Packaging & Delivery
Packaging Details
packing ofhydraulic telescopic mast : 2 sets put into a carton
Port
China main ports
Lead Time :
10 days after the payment
Product Description
antenna hydraulic pneumatic telescopic mast for communication trunk
technical data
main spec.
1)Extended height: 4.5m
2)Retracted height: 1.4m
3)Outer diameter range:36-51-66-82-98mm
4)Thickness: 3.0-3.0-3.0-3.5-4.0mm
5)Maximum head loads: 30kgs
 6)Number of sections: 5 sections
7)Wind load :80 km/h
8)Max Working pressure of air compressor:0.20MPA
9)Working temperature :-15--+60℃
Accessories
Car clamp--------------------------------------------------1 unit
Ground anchor------------------------------------------4 pieces
Guy wire----------------------------------------------------4 pieces
Air pump---------------------------------------------------1 piece
Tripod -----------------------------------------------------1 piece
Top plate---------------------------------------------------1 piece
Material
Al-Mg alloy 6063
Color
light brown

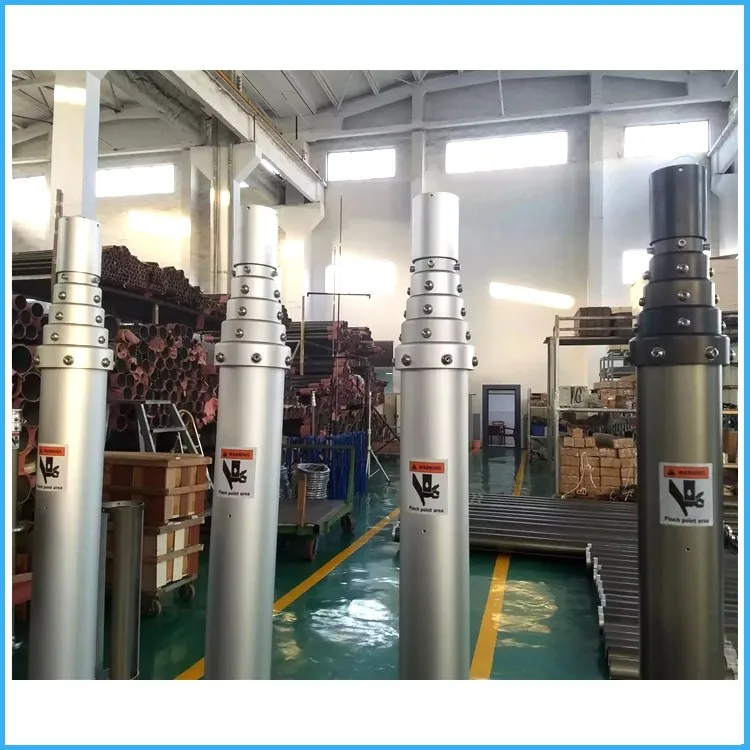

Detailed Images
antenna hydraulic pneumatic telescopic mast for communication trunk
accessories
model
unit
guy wire
1 set
ground anchor
1 set
air compressor or manual pump
1 unit
tripod or car clamp
1 unit
top plate
1 unit
bottom base
1 unit
Packing & Delivery
antenna hydraulic pneumatic telescopic mast for communication trunk
Packing details
C/NO.
DESCRIPTION
QTY
(UNIT)
N.W.
(KG)
G.W.
(KG)
MEAS
(CM)
1
Pole : --------------------------1 unit
accessories:-----------------1 unit
2
30.00
35.00
210*30*25
After-sale service
 Except the damages due to misuse,unauthorized modification and man-made sabotage,
the damaged of the telescopic mast will enjoyed free after-sales maintenance
within one year time from the date of delivery on the condition that the buyer
himself will bear the shipping cost back and forth and the said damage should be
confirmed by the seller through photos and description

Installation Instructions:
1.if mount mast on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel    stakes,
2.Determine the mounting position of telescopic mast if manual and motorized mast hitting one ground anchor per 120 degrees. If pneumatic mast in 90 degree to fix the Guy rope.
3.Mount lifting handle bar to raise up manual mast. If pneumatic or motorized, use air compressors/foot pump and motor. But if motorized one, hand crank also work.

Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
 oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
  it’s better  mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
4.Change seals easily on regular time can make mast in good using conditions after
     using 10 thousand times.
